'Black Prince' (1816). Scale: 1:24. Plan showing the section illustrating the cross bolting for the floors on the keel, and the midship section illustrating the method of fixing the deck beams to the sides for 'Black Prince' (1816), a
September 1814
National Maritime Museum

'Black Prince' (1816). Scale: 1:48 and 1:24. Plan showing the inboard profile for 'Black Prince' (1816), a 74-gun Third Rate, two-decker, building at Woolwich Dockyard. The plan illustrates the method of making the hooks and crutches,
September 1814
National Maritime Museum

'Black Prince' (1816). Scale: 1:48. Plan showing the gun deck (lower deck) illustrating diagonal decking and diagonal carlines proposed by Robert Seppings for 'Black Prince' (1816), a 74-gun Third Rate, two-decker, building at Woolwich
September 1814
National Maritime Museum

'Black Prince' (1816). Scale: 1:48. Plan showing the orlop deck with fore and aft platforms illustrating diagonal decking and diagonal carlines proposed by Robert Seppings for 'Black Prince' (1816), a 74-gun Third Rate, two-decker, bui
September 1814
National Maritime Museum

'Black Prince' (1816). Scale: 1:48. Plan showing the quarterdeck and forecastle as proposed by Robert Seppings for 'Black Prince' (1816), a 74-gun Third Rate, two-decker, building at Woolwich Dockyard.
September 1814
National Maritime Museum

'Black Prince' (1816). Scale: 1:48. Plan showing the upper deck illustrating diagonal decking and diagonal carlines proposed by Robert Seppings for 'Black Prince' (1816), a 74-gun Third Rate, two-decker, building at Woolwich Dockyard.
September 1814
National Maritime Museum

'Pitt' (1816), 'Agincourt' (1817). Scale 1:48 and 1:24. Plan showing the inboard profile for 'Pitt' (1816), a 74-gun Third Rate, two-decker, conforming to Mr. Seppings proposition, and later with alterations. The same plan wa
9 September 1814
National Maritime Museum

'Pitt' (1816), 'Agincourt' (1817). Scale 1:48. Plan showing the lower deck plan for 'Pitt' (1816), a 74-gun Third Rate, two-decker, conforming to Mr. Seppings proposition, and later with alterations. The same plan was then se
9 September 1814
National Maritime Museum

'Pitt' (1816), 'Agincourt' (1817). Scale 1:48. Plan showing the orlop deck for 'Pitt' (1816), a 74-gun Third Rate, two-decker, conforming to Mr. Seppings proposition, and later with alterations. The same plan was then sent t
9 September 1814
National Maritime Museum

'Pitt' (1816), 'Agincourt' (1817). Scale 1:48. Plan showing the quarterdeck and forecastle for 'Pitt' (1816) and 'Agincourt' (1817), both 74-gun Third Rate, two-deckers. Signed by Robert Seppings [Surveyor of the N
9 September 1814
National Maritime Museum

'Pitt' (1816), 'Agincourt' (1817). Scale 1:48. Plan showing the upper deck plan for 'Pitt' (1816), a 74-gun Third Rate, two-decker, conforming to Mr. Seppings proposition, and later with alterations. The same plan was then se
9 September 1814
National Maritime Museum

'Standard' (1782). Scale: 1:48. Plan showing the orlop deck for 'Standard' (1782), a 64-gun Third Rate, two-decker. Signed by George Parkin [Master Shipwright, Chatham Dockyard, 1813-1830].
6 December 1814
National Maritime Museum

'Talavera' (1818). Scale: 1:24. Midship section for for 'Talavera' (1818), a 74-gun Third Rate, two-decker building at Woolwich Dockyard. Note that the plan refers to her under her pre-launch name. Signed by Robert Seppings [Surve
22 March 1814
National Maritime Museum

'Talavera' (1818). Scale: 1:24. Plan showing the midship section for 'Talavera' (1818), a 74-gun Third Rate, two-decker building at Woolwich Dockyard. Note that the plan refers to her under her pre-launch name.
2 May 1814
National Maritime Museum

'Talavera' (1818). Scale: 1:24. Plan showing the midship section for 'Talavera' (1818), a 74-gun Third Rate, two-decker, building at Woolwich Dockyard. Note that the plan refers to her under her pre-launch name.
22 March 1814
National Maritime Museum

'Talavera' (1818). Scale: 1:24. Plan showing the section at Station '28' for 'Talavera' (1818), a 74-gun Third Rate, two-decker building at Woolwich Dockyard. Note that the plan refers to her under her pre-launch name. Si
March 1814
National Maritime Museum

'Talavera' (1818). Scale: 1:24. Plan showing the section through Station '28' for 'Talavera' (1818), a 74-gun Third Rate, two-decker building at Woolwich Dockyard. Note that the plan refers to her under her pre-launch name
4 May 1814
National Maritime Museum

'Talavera' (1818). Scale: 1:24. Plans showing the section through Station 'T' for 'Talavera' (1818), a 74-gun Third Rate, two-decker building at Woolwich Dockyard. Note that the plan refers to her under her pre-launch name
22 March 1814
National Maritime Museum

'Talavera' (1818). Scale: 1:48. Plan showing the framing profile (disposition) for 'Talavera' (1818), a 74-gun Third Rate, two-decker to be built at Woolwich Dockyard. Note that the plan refers to her under her pre-launch name. The
23 March 1814
National Maritime Museum

'Telavera' (1818). Scale: 1:24. Plan showing the section at Station 'T' for 'Talavera' (1818), a 74-gun Third Rate, two-decker building at Woolwich Dockyard. Note that the plan refers to her under her pre-launch name. Sig
March 1814
National Maritime Museum

'Telavera' (1818). Scale: 1:24. Plan showing the section at Station 28 for 'Talavera' (1818), a 74-gun Third Rate, two-decker building at Woolwich Dockyard. Note that the plan refers to her under her pre-launch name.
22 March 1814
National Maritime Museum

'Triumph' (1764). Scale: 1:96. Plan showing the outboard profile and section for 'Triumph' (1764), a 74-gun Third Rate, two-decker, as hulked and fitted as a Lazaretto with a roof. Signed by Edward Churchill [Assistant to Master Shipw
7 April 1814
National Maritime Museum

. deck
1814
National Maritime Museum

. deck, orlop
1814
National Maritime Museum

. deck, quarter & forecastle
1814
National Maritime Museum

. lines
1814
National Maritime Museum

. lines & profile
1814
National Maritime Museum

. Lower deck plan
1814
National Maritime Museum

. platform
1814
National Maritime Museum

. sheer
1814
National Maritime Museum

. Upper deck plan
1814
National Maritime Museum

Arethusa (1817); Thetis (1817); Hebe (1826); Minerva (1820); Venus (1820); Latona (1821); Diana (1822); Blanche (1819). Scale: 1:48. Plan showing the inboard profile for Thetis (1817), and with later alterations to the diagonal riders for Arethusa (1817)
27 July 1814
National Maritime Museum

Bahama (captured 1805). Scale: 1:48. Plan showing the body plan with sternboard outline, sheer lines, and longitudinal half-breadth for Bahama (captured 1805), a captured Spanish Third Rate, two-decker. The plan illustrates her as taken off at Chatham Doc
December 1814
National Maritime Museum

Canopus (1798). Scale: 1:48. Plan showing the inboard profile for Canopus (1798), a captured French Third Rate, fitted as a 80-gun Third Rate, two-decker and undergoing repair at Plymouth. Between March 1814 and March 1815 Canopus underwent a large repair
19 October 1814
National Maritime Museum

Canopus (1798). Scale: 1:48. Plan showing the inboard profile for Canopus (1798), a captured French Third Rate, fitted as an 80-gun Third Rate, two-decker and undergoing repair at Plymouth. Between March 1814 and March 1815 Canopus underwent a large repai
23 November 1814
National Maritime Museum

Prompte (1814), Psyche (1814). Scale 1:48. Plan showing the lower deck plan for Prompte (1814), Psyche (1814), both 32-gun Frigates to be built of fir at Chatham Dockyard.
4 February 1814
National Maritime Museum

Prompte (1814), Psyche (1814). Scale 1:48. Plan showing the quarter deck and forecastle for Prompte (1814), Psyche (1814), both 32-gun Frigates to be built of fir at Chatham Dockyard.
3rd February 1814
National Maritime Museum

Prompte (1814), Psyche (1814). Scale1:48. Plan showing the upper deck plan for Prompte (1814), Psyche (1814), both 32-gun Frigates to be built of fir at Chatham Dockyard.
5 February 1814
National Maritime Museum

Psyche (1814), Prompte (1814). Scale 1:48. A plan showing the inboard profile after alterations for building in fir Psyche (1814), Prompte (1814), both 32-gun, Fifth Rate Frigates at Chatham Dockyard. Four copies of this plan were sent to Quebec for Mr.St
31 January 1814
National Maritime Museum

Psyche (1814), Prompte (1814). Scale 1:48. A plan showing the Oorlop deck with fore & aft platforms for Psyche (1814), Prompte (1814), both 32-gun, Fifth Rate Frigates to be built at Chatham Dockyard.
1st Febuary 1814
National Maritime Museum

Thompson's Patent Rudder (no date). No scale. Plan showing a half body plan, stern elevation, and stern plan illustrating the movement of the Thompson Patent Rudder with description of its advantages. Note that this was engraved by Richard Ebsworth
1814
National Maritime Museum

Unnamed proposed 215ft 160-gun, First Rate, three-decker. Scale: 1:48. Plan showing the body plan, sternboard decoration detail, sheer lines with decoration detail and figurehead, and longitudinal half-breadth for an unnamed proposed 215ft 160-gun First R
January 1814
National Maritime Museum

Wellesley (1815); Melville (1817). Scale: 1:48. Plan showing the gun deck (lower deck) for Wellesley (1815) and Melville (1817), both 74-gun Third Rate, two-deckers. On 25 May 1814 duplicate copies were sent to Bombay. One set went in the East India Co
January 1814
National Maritime Museum

Wellesley (1815); Melville (1817). Scale: 1:48. Plan showing the inboard profile for Wellesley (1815) and Melville (1817), both 74-gun Third Rate, two-deckers. On 25 May 1814 duplicate copies were sent to Bombay. One set went in the East India Company
January 1814
National Maritime Museum

Wellesley (1815); Melville (1817). Scale: 1:48. Plan showing the orlop deck with for & aft platforms, and elevations of the storeroom and cabins for Wellesley (1815) and Melville (1817), both 74-gun Third Rate, two-deckers. On 25 May 1814 duplicate
January 1814
National Maritime Museum

Wellesley (1815); Melville (1817). Scale: 1:48. Plan showing the quarterdeck and forecastle for Wellesley (1815) and Melville (1817), both 74-gun Third Rate, two-deckers. Initialled by Henry Peake [Surveyor of the Navy, 1806-1822], Joseph Tucker [Survey
January 1814
National Maritime Museum

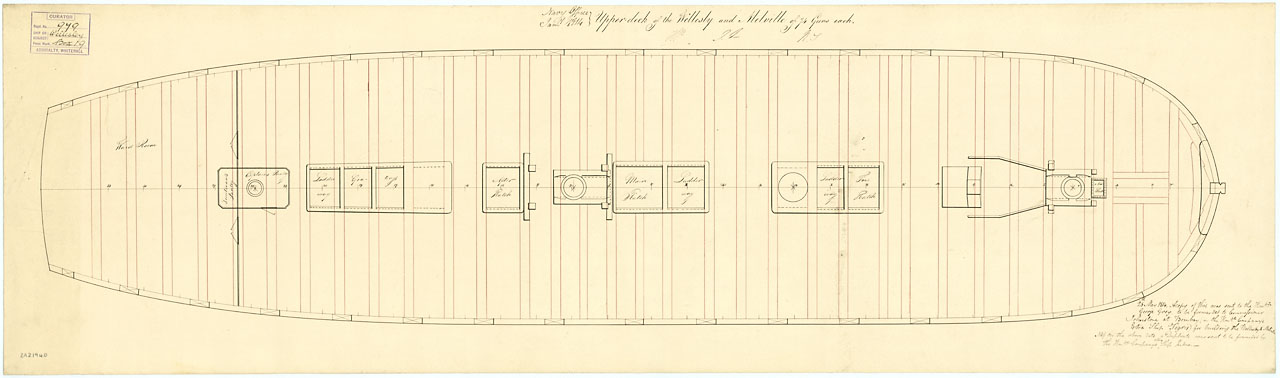

Wellesley (1815); Melville (1817). Scale: 1:48. Plan showing the upper deck for Wellesley (1815) and Melville (1817), both 74-gun Third Rate, two-deckers. On 25 May 1814 duplicate copies were sent to Bombay. One set went in the East India Company Extra
January 1814
National Maritime Museum

Saturn (1786). Scale: 1:48. Plan showing the inboard profile with figurehead and alterations, for Saturn (1786), a 74-gun Third Rate, two-decker, after being cut down and fitted as a 58-gun Fourth Rate, Frigate. The old upper deck became a continuous qu
1 January 1814
National Maritime Museum

Saturn (1786). Scale: 1:48. Plan showing the lower deck (gun deck) for Saturn (1786), a 74-gun Third Rate, two-decker, after being cut down and fitted as a 58-gun Fourth Rate, Frigate. Signed by Thomas Roberts [Master Shipwright, Plymouth Dockyard, 181
1 January 1814
National Maritime Museum

Saturn (1786). Scale: 1:48. Plan showing the orlop deck with fore & aft platforms for Saturn (1786), a 74-gun Third Rate, two-decker, after being cut down and fitted as a 58-gun Fourth Rate, Frigate. The old upper deck became a continuous quarterdec
1 January 1814
National Maritime Museum

Saturn (1786). Scale: 1:48. Plan showing the upper deck for Saturn (1786), a 74-gun Third Rate, two-decker, after being cut down and fitted as a 58-gun Fourth Rate, Frigate. Signed by Thomas Roberts [Master Shipwright, Plymouth Dockyard, 1813-1815].
1 January 1814
National Maritime Museum

Weymouth (1804). No Scale (probably 1:96). Plan showing incomplete inboard profile, the spar deck, upper deck, and lower deck of Weymouth (1804), a purchased East Indiaman as fitted for a Storeship in December 1813. Signed by Edward Sison, [Master Shi
15 January 1814
National Maritime Museum

57ft Mooring Lighter (1815). Scale: 1:48. A plan showing the body plan, sheer lines with midship frame, longitudinal half-breadth, and half deck plan for a fifty-seven foot mooring lighter (1815), for use in the yard at Halifax, Nova Scotia. There are
February 1814
National Maritime Museum

Pumping system as designed by Captain Truscott and fitted to Havock (1805). Scale: 1:24 and 1:12. Plan showing an elevation with pump details for the pumping system as designed by Captain Truscott, and fitted to Havock (1805), a 14-gun Brig Sloop. The p
18 February 1814
National Maritime Museum

Dolphin (1781). Scale: 1:96. Plan showing the inboard profile, spar deck, upper deck, lower deck, and orlop deck of the Dolphin (1814), a 50-gun Fifth Rate, as converted to a Storeship. Signed by William Stone [Master Shipwright, Deptford Dockyard, 181
1 March 1814
National Maritime Museum

'Talavera' (1818). Scale: 1:48. Plan showing the body plan, sheer lines (with alterations), and longitudinal half-breadth for building the 'Talavera' (1818), a 74-gun Third Rate, two-decker at Woolwich Dockyard. Note that the plan r
15 March 1814
National Maritime Museum

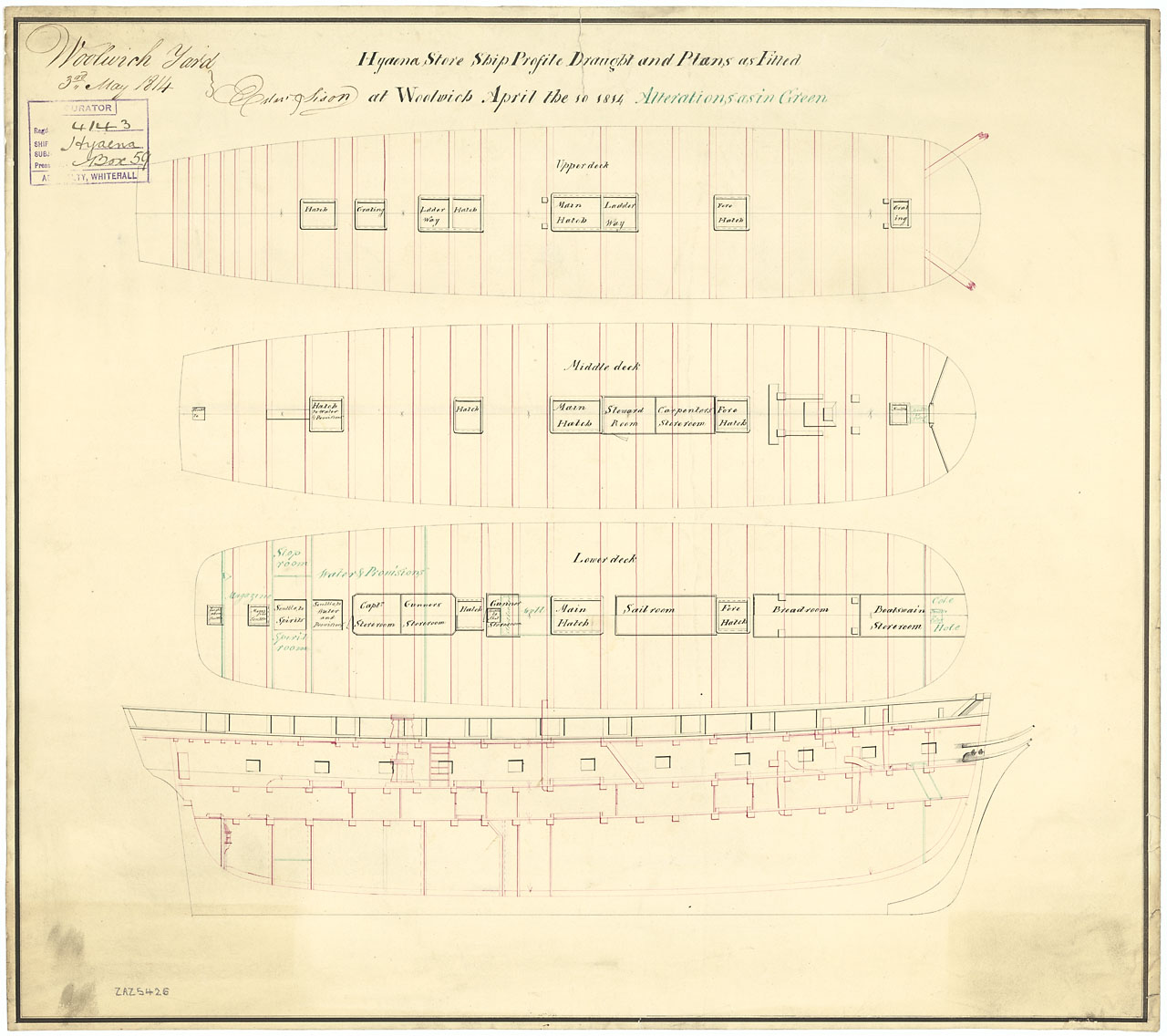

'Hyaena' [Hyena] (1804). Scale: probably 1:96. A plan showing the upper deck, middle deck, lower deck, and inboard profile for 'Hyaena' [Hyena] (1804), a purchased merchant ship converted to a Sixth Rate Frigate, now fitted as a store
3 May 1814
National Maritime Museum

'Dromedary' (1808). Scale: 1:96. A plan showing an incomplete inboard profile, and fore and aft platforms for 'Dromedary' (1808), purchased as the 'Howe' (1805) as a frigate in India, now fitted as a twenty-four gun storeshi
14 July 1814
National Maritime Museum

'Dromedary' (1808). Scale: 1:96. A plan showing the spar deck (quarter deck and forecastle with enclosed waist), gun deck (upper), and lower deck for the 'Dromedary' (1808), purchased as the 'Howe' (1805) as a frigate in Ind
14 July 1814
National Maritime Museum

Canopus (1798); Armada (1810). No scale. Plan showing a part section of the upper deck for Armada (1810), a 74-gun Third Rate, two-decker; and a part section of the deck (for both upper and lower) for Canopus (1798), a captured French Third Rate, now fit
September to November 1814
National Maritime Museum

'Pitt' (1816). Scale 1:24. Plan showing the midship section illustrating the manner of attaching the beams to the sides using iron knees, and sketches of the waterway and binding strakes for 'Pitt' (1816), a 74-gun Third Rate, two-deck
9 September 1814
National Maritime Museum

Unnamed 41ft single-masted unarmed advice? boat/lighter. Scale: 1:24. Plan showing the framing profile (disposition) for an unnamed 41ft single-masted unarmed cutter/advice boat/lighter for Jamaica. David Lyon suggests this may be the sailing lighter &#
13 October 1814
National Maritime Museum

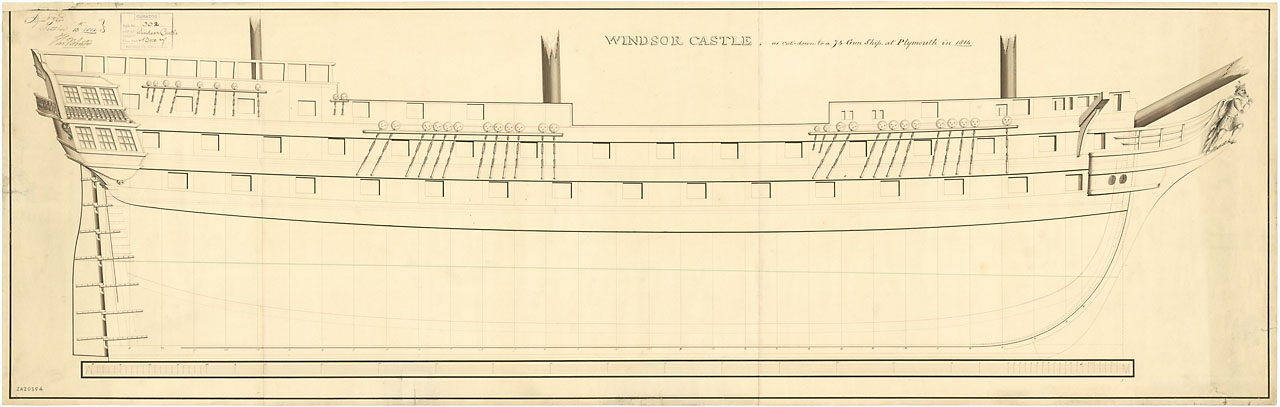

Windsor Castle (1790). Scale 1:48. A plan showing the outboard sheer (no water lines) with figurehead for 'Windsor Castle' (1790), a 90-gun Second Rate, three-decker, as cut down to a 74-gun, Third Rate, two-decker. Signed by Thomas Roberts [M
13 October 1814
National Maritime Museum

26 ft Yawl. Scale: 1:24. Plan showing the body plan, sheer lines with inboard detail, longitudinal half-breadth for a 26 ft Yawl built at Deptford by Messrs Harper & Wilson, and returned to Portsmouth from the Semiramis (1808), a 36 gun Fifth Rate Fr
Dated: 30 November 1814
National Maritime Museum
